D2E
Nominal Voltage (VDC): 24 & Maximum Current (20S Min): 100Arms , EN1175-2020:Support
Nominal Voltage (VDC): 24 & Maximum Current (20S Min): 100Arms , EN1175-2020:Support
Features
Typical Application

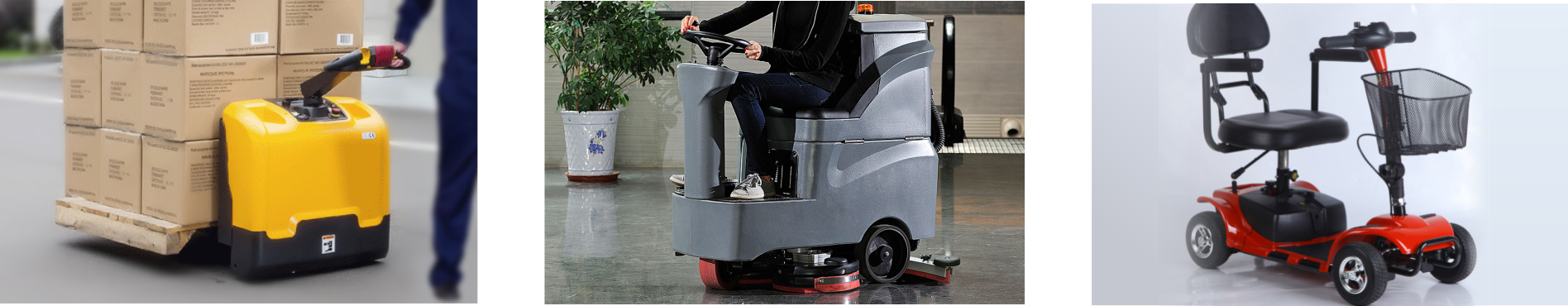

D2E brushed motor controller is Optimize for used on lightweight CLASS III stacker or truck's traction controller,also used on other industrial vehicle.
Functional Integrity
1. Rating 24V/100A
2. Two MCU, cross check & higher diagnostic coverage
3. Rating 24V/70AMain Relay Built in controller
4. M5 Bolt-on connection for bus-bar
5. Designed to meet EN13849-1(Cat2,PL=D)
6. CAN for tiller or Hand-console
Robust Safety and Reliability
1. Travel Control system
2. Interlock Braking
3. Emergency Reverse
4. Safety Brake
5. Speed Limit
6. Hazardous Load Handling Motion
Specifications
| Items | Specifications |
| Product Number | D2E |
| 20s output Current Rating (Arms) | 100A |
| 2Min output Current Rating (Arms) | 60A |
| 60Min output Current Rating (Arms) | 40A |
| Application | Brushed DC Motor (Bi-Di) |
| Communication | Serial/CAN |
| Voltage | 24VDC |
| Operating Temperature | -30°C ~ +55°C |
